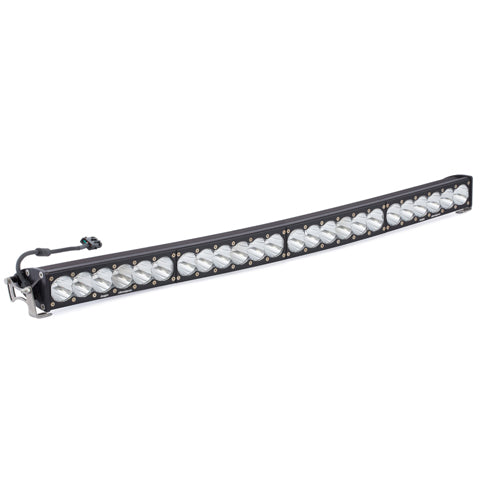

40 Inch LED Light Bar High Speed Spot Pattern OnX6 Arc Series Baja Designs

40 Inch LED Light Bar High Speed Spot Pattern OnX6 Arc Series Baja Designs

Regular price $1,750.95 USD
Regular price Sale price $1,750.95 USD
Sale Sold out

The NEW OnX6 Arc Series is the perfect combination of performance and aesthetics. Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

The OnX6 Arc Series LED Light Bar is Brighter. Bolder. Better.

Light Pattern:High Speed Spot: A longer and narrower 9 degree beam Focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.(Lighting Zone 4 and 5)

Baja Designs Features:

  • Satisfactions Guarantee 30 Day Money Back Guarantee
  • Limited Lifetime Warranty Complete Purchase Protection
  • uService Replaceable Lenses And Optics
  • ClearView All The Light, Right Where You Need It.
  • MoistureBlock Waterproof, Rain Proof, Submersible
  • CopperDrive Only LED Driven At 100 percent
  • 5000K Daylight Less Driver Fatigue, Natural Color

Specifications:

  • Lumens: (High) 39,220 (Low) 32,760 Utilizing 24 Cree LEDs
  • Wattage/Amps: (High) 340W / 26.8A (Low) 284W / 22.4A
  • Dimensions: 40 x 4.29 x 2.69 inch
  • Weight: 15.05 lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
  • Bezel: Billet Machined Aluminum
  • Hardware and Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft and Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)

Includes:

OnX6 40 inch LED Light Bar Arc Series
Mounting Brackets
Hi-Low Dongle
