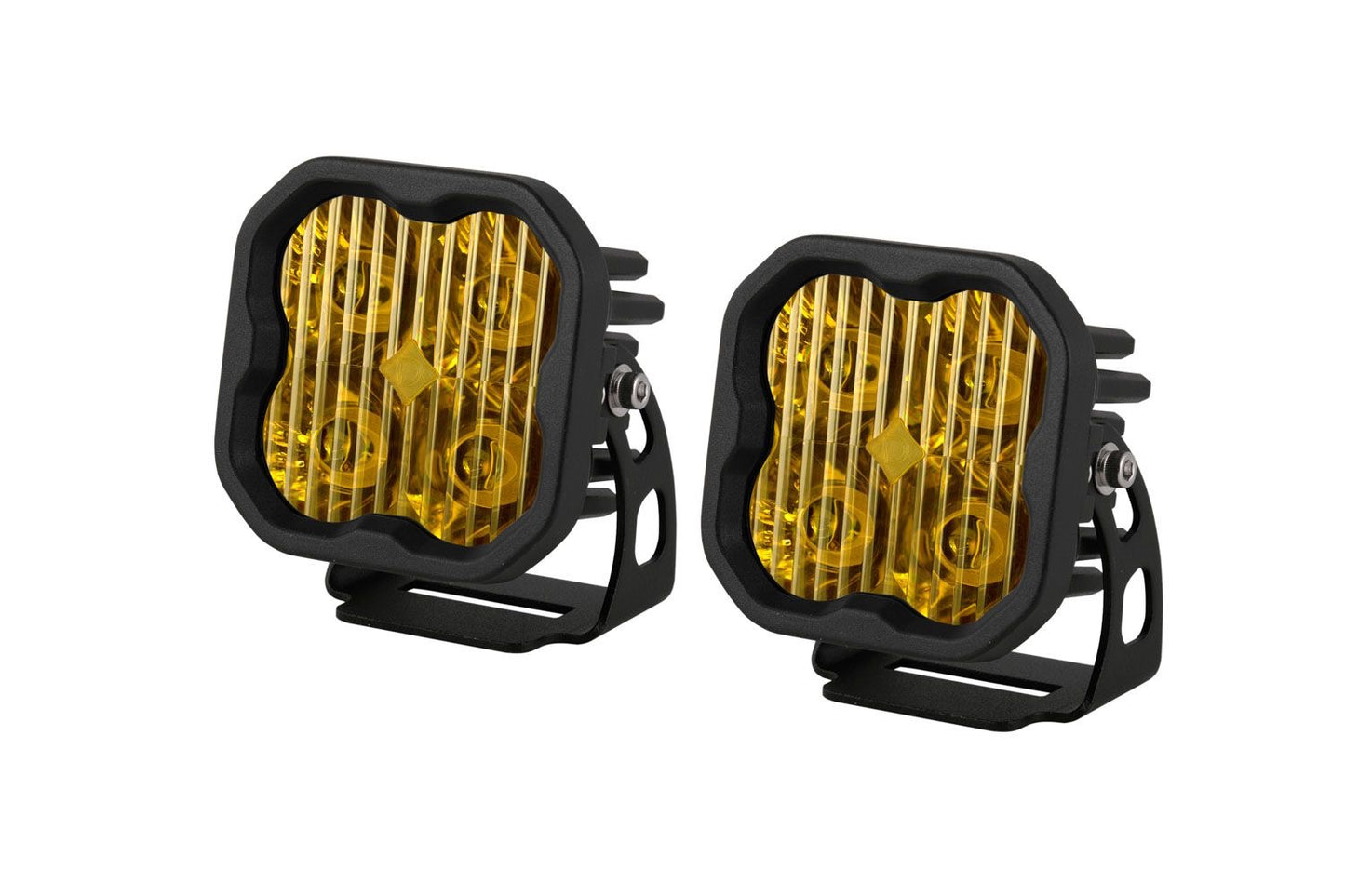

Diode Dynamics SS3 LED Pod (pair)

Features

• Modern TIR optics provide highest intensity on the market
• Backlight accent feature, available in white, amber, red, and blue
• Available in Driving, SAE Fog, Flood, Combo, or Spot beam patterns
• Durable powdercoated aluminum construction
• Integrated Deutsch-style connector
• Engineered and Assembled in USA

Overview

Introducing the SS3 3” Max LED Pod! The first of its kind, the SS3 Max utilizes the newest LED chip technology to deliver higher output intensity than any other 3” light on the market.

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with the brand new Osram Boost HX 20-watt LEDs, the total output intensity of the SS3 Max is greater than any other LED pod on the market today, with a maximum of 251,000 candela, shining light over a kilometer away!

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you! Click here to learn more: Beam Pattern Overview Video.

Driving is great for general illumination. Rather than a traditional "spot" pattern, the Stage Series Driving pattern shines in an 18x8 degree spread, providing just enough width to fully illuminate the road ahead at high speeds. Normally, our Driving optic is available as a compliant SAE Driving pattern, but due to its extreme intensity, the SS3 Max exceeds the SAE output requirements. It’s still a great option for off-road use at high speed, such as stage rally racing.

SAE Fog uses our distinctive FineLine optic design, and provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle. Choose your output color of cool white or yellow, which is often said to help cut through inclement weather.

Flood pattern was designed to provide uniform, even illumination with a full 60x60 degree spread of light. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout. It is perfect to use as a backup light, for lighting up anything at low speeds, or for trailers and worksites.

Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 65x25 degree pattern. The combo lens features a flood optic on one side and a driving optic on the other.

Spot is an unmodified pattern, shining light directly from the TIR optic. The result is a highly focused 6-degree beam of light, perfect for directing light far into the distance. With an incredible output of 251,000 candela, the SS3 Max is capable of illuminating objects over a kilometer in the distance - throwing light further than any other 3-inch pod light ever made.
