Ford Super Duty (11-16), Fog Pocket Kit SAE Baja Designs

Ford Super Duty (11-16), Fog Pocket Kit SAE Baja Designs

Regular price $535.95 USD
Regular price Sale price $535.95 USD
Sale Sold out

Baja Designs fog pocket kit for the Ford F-250/350 Super Duty (’11-16 ) is the perfect road-legal auxiliary fog light on the market today and allows enthusiasts to retain the factory fit and finish of their vehicles. This plug-n-play kit uses our next generation Squadron® SAE lights, mounting brackets and wiring harness that allows for use of the factory switch.

Keeping you safe on the road or trails, the Squadron® SAE is engineered with all-new aspheric projector optics and advanced LED technology providing a performance increase in luminous flux of 56% over our previous generation SAE model and illuminates Zone 1 with a controlled, sharp cutoff from the combination of the new LED technology and highly efficient aspheric projector optics.  Designed to meet the current SAE J583 fog lamp requirements, the Squadron® SAE is fully compliant with on-road regulations, making them an ideal choice for driving through dust, fog, and inclement weather. Backed by our limited lifetime warranty and 30-day satisfaction guarantee, giving you the ultimate in-purchase protection.

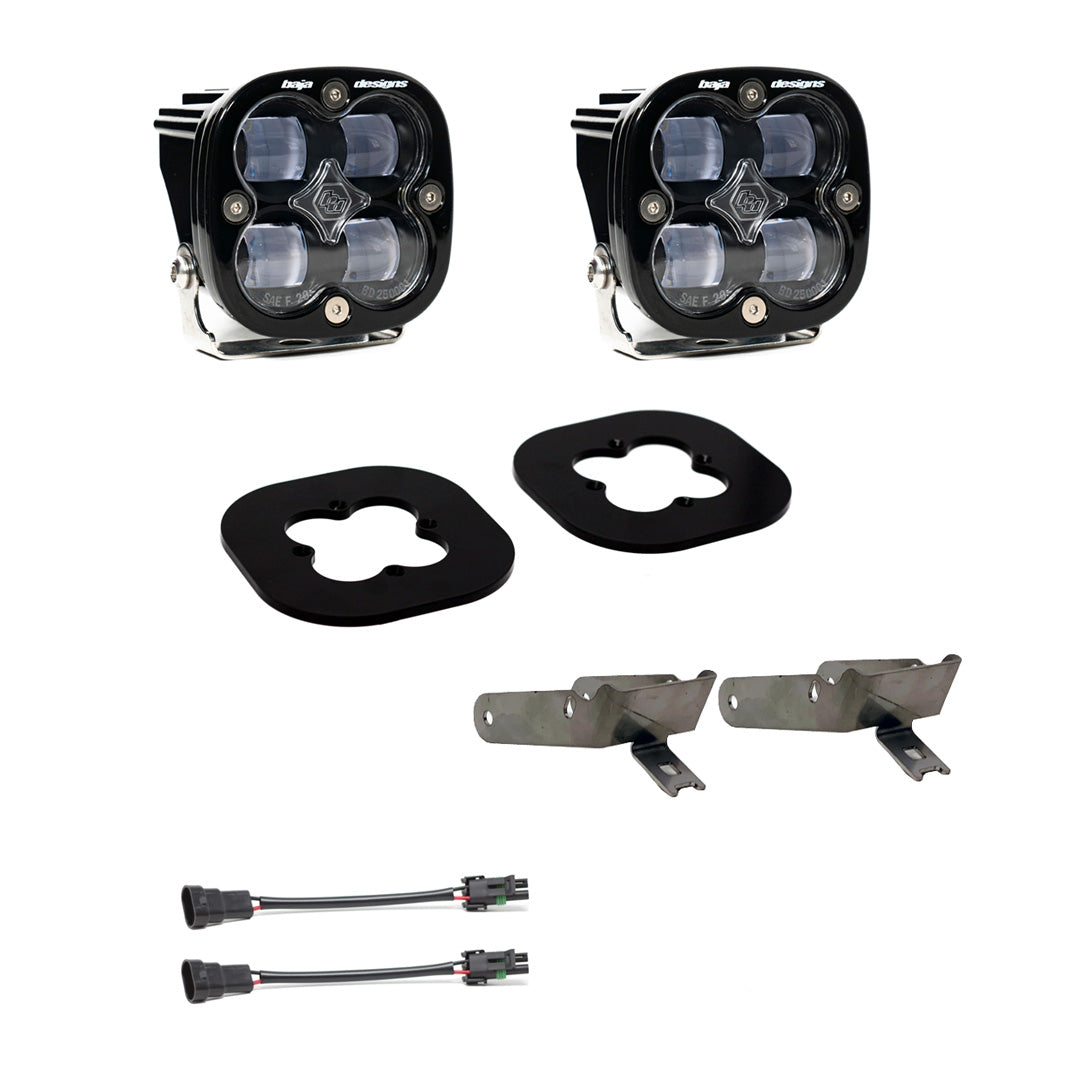

Includes:

  • x2 Ford Super Duty (11-16) Fog Pocket Brackets
  • x2 Wiring Adapters
  • x2 Squadron SAE Clear with Vehicle Specific Bezels

Baja Designs Features:

  • Satisfaction Guarantee - 30 Day Money Back Guarantee
  • Limited Lifetime Warranty - Complete Purchase Protection
  • uService- Replaceable Lenses And Optics
  • ClearView - All The Light, Right Where You Need It.
  • MoistureBlock - Waterproof, Rain Proof, Submersible
  • CopperDrive - Only LED Driven At 100 percent
  • 5000K Daylight - Less Driver Fatigue, Natural Color

Specifications (Per Light):

  • Compliance Standard: SAE Standard J583
  • Dimensions: 3.07 inch x 2.77 inch x 3.07 inch
  • Weight: 12 ounces
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Hard Anodized and Powder Coated Cast Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware and Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof, Submersible to 9ft)
  • IK10 Compliant (Mechanical Impact Testing)

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degree) and spot (9 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)

Spot: A longer and narrower 9 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
