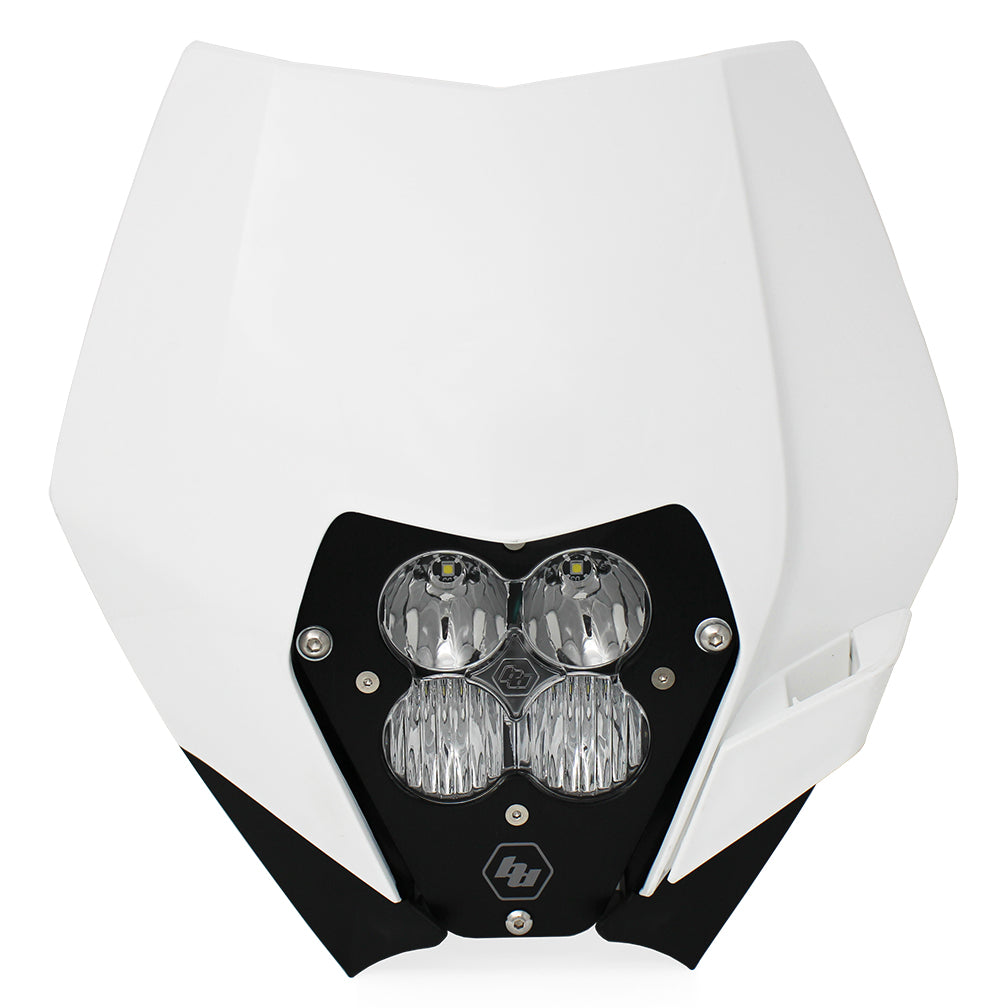

KTM Headlight Kit DC 08-13 W/Headlight Shell White XL Pro Series Baja Designs

KTM Headlight Kit DC 08-13 W/Headlight Shell White XL Pro Series Baja Designs

Regular price $460.95 USD
Regular price Sale price $460.95 USD
Sale Sold out

Specifically designed for those riders who are looking for more than just your average headlight. The XL Pro, LED KTM 2008-2013 w/Headlight Shell Kit is in a league of its own, producing 4,900 lumens and 40 watts giving you the perfect mix of power and performance, while offering a 20 percent dimming feature. The XL Pro, LED KTM 2008-2013 w/Headlight Shell Kit has been meticulously designed by our engineers to give our riders an extremely light weight (1.85 lbs) race light, while presenting a unique style and appearance that you will only find from Baja Designs.

The XL Pro, LED KTM 2008-2013 Kit is plug and play making for an easy install. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.
Note: For the EXCs that were made from 2007-2011 that are carbureted, our lights are plug and play with the purchase of 61-1040 (DC conversion kit). Electric start bikes that require a stator modification or rewind will have to the purchase a switch and wiring harness kit.

For Electric-Start Bikes: Some electric-start bikes require the stator to be modified or rewound as well as the addition of a new rectifier/regulator to run LED lights. If your bike requires a new rectifier/regulator please order part (12-2004) (please provide year/make/model of bike). Detailed stator modification instructions and hardware is included for all bikes that require a stator modification to run LED lights.

Baja Designs Features:

  • Satisfactions Guarantee 30 Day Money Back Guarantee
  • Limited Lifetime Warranty Complete Purchase Protection
  • uService Replaceable Lenses And Optics
  • ClearView All The Light, Right Where You Need It.
  • MoistureBlock Waterproof, Rain Proof, Submersible
  • CopperDrive Only LED Driven At 100 percent
  • 5000K Daylight Less Driver Fatigue, Natural Color

Specifications:

  • Lumens: 4,900 Utilizing 4 Cree XP-L LEDs
  • Wattage/Amps: 40W / 3.33A
  • Dimensions: 4.43 x 3.65 x 4.43 inch
  • Weight: 1.85 lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Hard Anodized Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware and Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft and Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)

Includes:
XL Pro, LED KTM 2008-2013 w/Headlight Shell Kit
