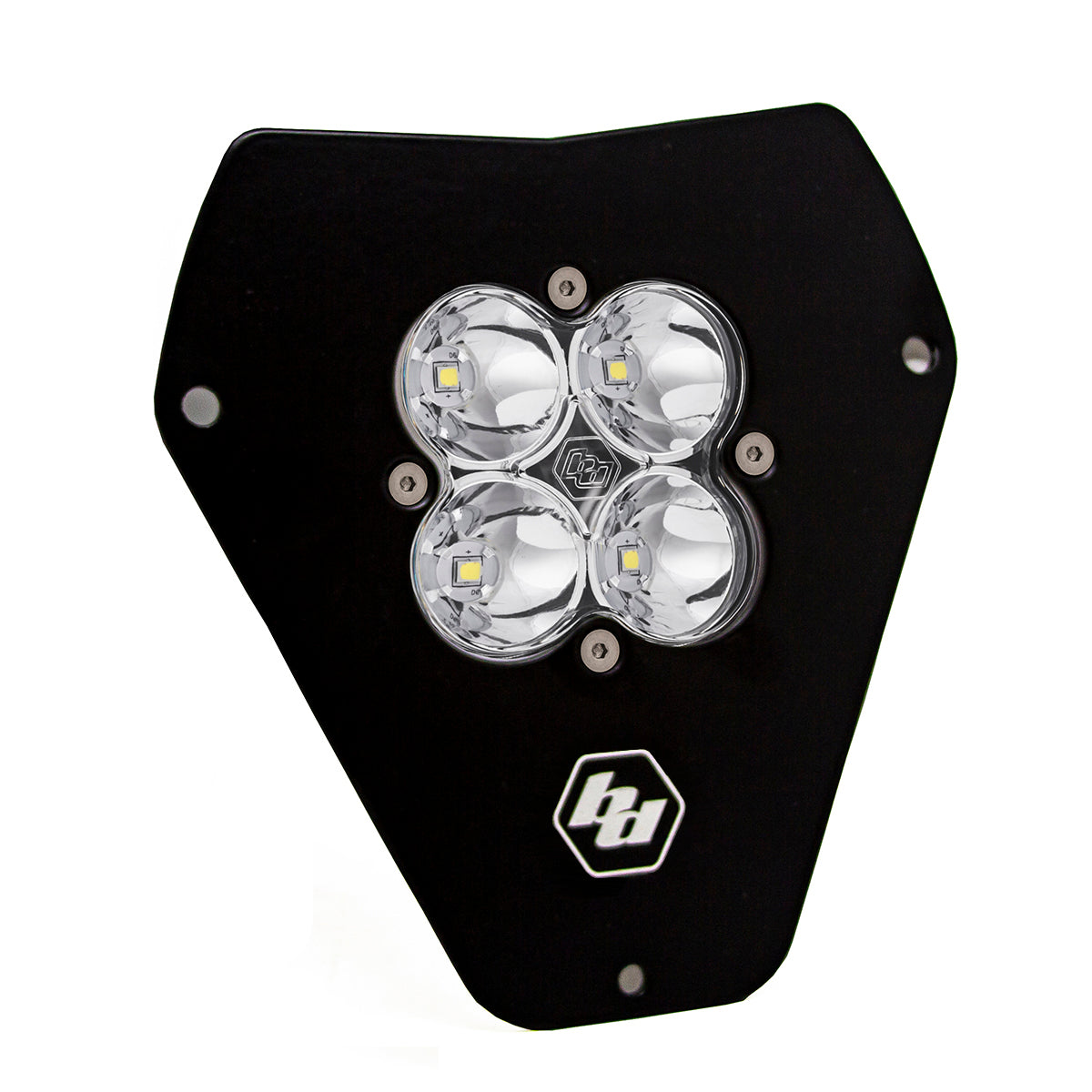

Squadron Sport, LED KTM 2008-2013 Kit

If you are looking for an off road light that features unique styling and leading edge performance, than the Squadron Sport, LED KTM 2008-2013 Kit is the light for you. The Sport produces an impressive 2,260 lumens while only drawing 20 watts, allowing for a longer ride. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

Note: For the EXCs that were made from 2007-2011 that are carbureted, our lights will require the purchase of 61-1040 (DC conversion kit).
Electric start bikes that require a stator modification or rewind will have to the purchase a switch and wiring harness kit.

For Electric-Start Bikes: Some electric-start bikes require the stator to be modified or rewound as well as the addition of a new rectifier/regulator to run LED lights. If your bike requires a new rectifier/regulator please order part (12-2004) (please provide year/make/model of bike). Detailed stator modification instructions and hardware is included for all bikes that require a stator modification to run LED lights.

Baja Designs Features:

• Satisfactions Guarantee 30 Day Money Back Guarantee
• Limited Lifetime Warranty Complete Purchase Protection
• uService Replaceable Lenses And Optics
• ClearView All The Light, Right Where You Need It.
• MoistureBlock Waterproof, Rain Proof, Submersible
• CopperDrive Only LED Driven At 100 percent
• 5000K Daylight Less Driver Fatigue, Natural Color

Specifications:

• Lumens: 2,260 Utilizing 4 LEDs
• Wattage/Amps: 20W / 1.4A
• Dimensions: 3.07 x 2.77 x 3.07 inch
• Weight: .90 ounces
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hard Coated Polycarbonate
• Housing: Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Hardware and Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof up to 9ft and Pressure Washable)
• IK10 Compliant (Mechanical Impact Testing

Includes:
Squadron Sport, LED KTM 2008-2013 Kit

Spot: A longer and narrower 8° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
